V Rings for shafts  DIN 5018

V Rings for shafts DIN 5018

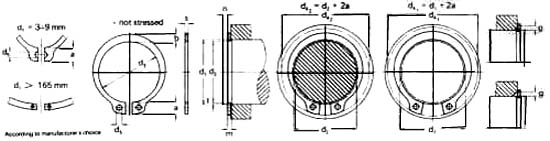

RINGS FOR HOUSING BORES    DIN:472  I.S. 3075    I
Nominal dimension

RING

GROOVE
Shaft dia.
d1		 s
h 11		 d3 Teoler-
ance		 b d5 Coefficient
   K
( kg x mm )		 Weight
( kg x 1,000)		 d2 Tolerance M
min
dim.		 Ax.groove
area
Fp (mm2)
12
 1.00 11.00   2.10 1.30 2160 0.500 11.50 -0.110 1.10 4.22
13
 1.00 11.90   2.10 1.30 2080 0.560 12.40 -0.110 1.10 5.40
14
 1.00 12.90   2.10 1.30 1920 0.580 13.40 -0.110 1.10 5.80
15
 1.00 13.80 +0.100 2.20 1.30 1930 0.660 14.30 -0.110 1.10 7.30
16
 1.00 14.70 -0.180 2.30 1.30 1870 0.720 15.20 -0.110 1.10 8.90



17
 1.00 15.70   2.40 1.30 1820 0.810 16.20 -0.110 1.10 9.40
18
 1.20 16.50   2.60 1.50 3260 1.140 17.00 -0.110 1.30 12.40
20
 1.20 18.50   2.80 1.50 3010 1.430 19.00 -0.150 1.30 13.80
22
 1.20 20.50 +0.130 3.00 1.50 2970 1.630 21.00 -0.150 1.30 15.20
23
 1.20 21.50 -0.210 3.10 1.50 2900 1.780 22.00 -0.150 1.30 16.00


24
 1.20 22.20 +0.210 3.20 1.50 2880 1.900 22.90 -0.210 1.30 18.20
25
 1.20 23.20 +0.210 3.40 1.50 2880 2.100 23.90 -0.210 1.30 19.10
26
 1.20 24.20 +0.210 3.50 1.50 2840 2.180 24.90 -0.210 1.30 19.80
28
 1.50 25.90 +0.210 3.80 2.00 5600 3.180 26.60 -0.210 1.60 27.00
30
 1.50 27.90 +0.210 3.90 2.00 5350 3.580 28.60 -0.210 1.60 29.20


32
 1.50 29.60 +0.210 4.00 2.00 5200 3.880  30.30 -0.250 1.60 37.50
34
 1.50 31.50 +0.250 3.50 2.00 5050 3.600 32.30 -0.250 1.60 40.00
35
 1.50 32.20 +0.250 4.20 2.00 5010 4.530 33.00 -0.250 1.60 48.00
40
 1.75 36.50 +0.390 4.50 2.00 7700 6.490 37.50 -0.250 1.85 76.00
42
 1.75 38.50 +0.390 4.70 2.00 7600 6.510 39.50 -0.250 1.85 80.00


45
 1.75 41.50 +0.390 5.00 2.00 7500 7.800 42.50 -0.250 1.85 86.00
47
 1.75 43.50 +0.390 5.20 2.00 7350 8.090 44.50 -0.250 1.85 90.00
48
 1.75 44.50 +0.390 5.30 2.00 7350 8.480 45.50 -0.250 1.85 95.00
50
 2.00 45.80 +0.390 5.40 2.50 10800 9.840 47.00 -0.250 2.15 115.00
55
 2.00 50.80 +0.460 5.60 2.50 10400 11.420 52.00 -0.300 2.15 126.00


58
 2.00 53.80 +0.460 5.80 2.50 10000 13.000 55.00 -0.300 2.15 133.00
60
 2.00 55.80 +0.460 6.00 2.50 9950 13.800 57.00 -0.300 2.15 138.00
65
 2.50 60.80 +0.460 6.20 2.50 18700 20.750 62.00 -0.300 2.65 149.00
70
 2.50 65.50 +0.460 6.50 2.50 18500 23.700 67.00 -0.300 2.65 162.00
72
 2.50 67.50 +0.460 6.60 2.50 18700 24.700 69.00 -0.300 2.65 166.00


75
 2.50 70.50 +0.460 6.80 2.50 18200 27.500 72.00 -0.300 2.65 175.00
80
 2.50 74.50 +0.460 7.00 2.50 17500 28.900 76.50 -0.300 2.65 220.00
82
 2.50 76.50 +0.460 7.10 2.50 18400 29.650 78.50 -0.350 2.65 225.00
85
 3.00 79.50 +0.460 7.30 3.00 30000 39.500 81.50 -0.350 3.15 230.00
87
 3.00 81.50 +0.540 7.40 3.00 29700 40.000 83.50 -0.350 3.15 235.00


90
 3.00 84.50 +0.540 7.50 3.00 28800 41.920 86.50 -0.350 3.15 250.00
95
 3.00 89.50 +0.540 7.80 3.00 28500 47.700 91.50 -0.350 3.15 256.00
100
 3.00 94.50 +0.540 8.00 3.00 27600 79.920 96.50 -0.350 3.15 275.00
