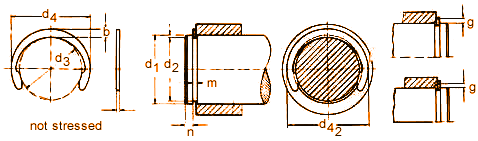

Crescent Rings for Shafts      Din  5103

Crescent Ring, Crescent Rings, Crescent Rings for Shafts, Locking Device, Rib Washers

Nominal
dimension

RINGS

 GROOVE
Shaft dia. d1 s
h 11		 d3 Toler-ance b
~		 Weight
(kg x 1,000)

Max.load
(kg)

 d2 Toler- ance M
min.
5.0 0.60 3.80 +0.075 1.20 0.07 55 4.0 -0.075 0.64
6.0 0.70 4.80 +0.075 1.30 0.10 65 5.0 -0.075 0.74
6.5* 0.70 5.60 +0.075 1.30 0.11 65 5.8 -0.075 0.74
7.0 0.80 5.80 +0.075 1.40 0.14 80 6.0 -0.090 0.85
8.0 0.80 6.80 +0.090 1.60 0.19 95 7.0 -0.090 0.85
9.0 1.00 7.80 +0.090 1.70 0.28 105 8.0 -0.090 1.10
10.0 1.00 8.75 +0.090 1.70 0.31 120 9.0 -0.090 1.10
11.0 1.00 9.65 +0.180 1.80 0.34 130 10.0 -0.110 1.10
12.0 1.00 10.55 +0.180 1.90 0.38 155 10.9 -0.110 1.10
13.0 1.00 11.40 +0.180 2.00 0.43 185 11.8 -0.110 1.10
14.0 1.00 12.30 +0.180 2.00 0.46 215 12.7 -0.110 1.10
15.0 1.00 13.20 +0.180 2.10 0.52 250 13.6 -0.110 1.10
16.0 1.00 14.10 +0.180 2.20 0.57 290 14.5 -0.110 1.10
17.0 1.00 14.90 +0.180 2.25 0.62 330 15.4 -0.110 1.10
18.0 1.20 15.80 +0.180 2.30 0.80 360 16.3 -0.110 1.30
19.0 1.20 16.70 +0.180 2.40 0.89 410 17.2 -0.110 1.30
20.0 1.20 17.55 +0.180 2.55 1.00 450 18.1 -0.210 1.30
22.0 1.20 19.35 +0.210 2.80 1.20 550 19.9 -0.210 1.30
23.0 1.20 20.20 +0.210 2.90 1.30 600 20.8 -0.210 1.30
24.0 1.20 21.10 +0.210 3.00 1.38 660 21.7 -0.210 1.30
25.0 1.20 22.00 +0.210 3.15 1.52 710 22.6 -0.210 1.30
26.0 1.20 22.90 +0.210 3.25 1.64 770 23.5 -0.210 1.30
28.0 1.50 24.60 +0.210 3.50 2.35 940 25.2 -0.210 1.60
30.0 1.50 26.30 +0.210 3.70 2.85 1050 27.0 -0.210 1.60
32.0 1.50 28.10 +0.210 4.00 3.25 1140 28.8 -0.210 1.60
35.0 1.50 30.80 +0.250 4.30 3.75 1460 31.5 -0.250 1.60
36.0 1.75 31.70 +0.250 4.40 4.50 1550 32.4 -0.250 1.85
38.0 1.75 33.40 +0.250 4.60 4.95 1700 34.2 -0.250 1.85
40.0 1.75 35.20 +0.390 4.90 5.55 1900 36.0 -0.250 1.85
42.0 1.75 37.00 +0.390 5.10 5.90 2100 37.8 -0.250 1.85
45.0 1.75 39.60 +0.390 5.50 7.00 2400 40.5 -0.250 1.85
48.0 1.75 42.30 +0.390 5.90 8.10 2700 43.2 -0.250 1.85
50.0 2.00 44.00 +0.390 6.20 10.00 3000 45.0 -0.250 2.15
52.0 2.00 46.00 +0.390 6.30 10.70 3150 47.0 -0.250 2.15
55.0 2.00 48.50 +0.390 6.50 11.50 3300 50.0 -0.250 2.15

Material :   Spring steel HRc = 47 to 51 or HV = 480 to 540 kg/mm2
*) Special design differing in shape
