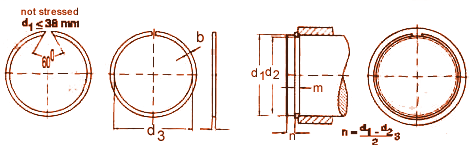

Snap Ring For Housing Bores  DIN 5417

Snap Ring For Housing Bores DIN 5417

Housing
dia.d1
d3
Min.

-0.1

-0.1
d Tolerance

Housing
dia. d1

d3
min.

-0.1

-0.1
d2 Toler- ance
7 7.5 1.00 0.8 7.3 +0.09 86 88.6 2.80 2.0 87.8 +0.22
8 8.5 1.00 0.8 8.3 +0.09 88 91.0 3.40 2.5 90.0 +0.22
9 9.5 1.10 0.8 9.3 +0.09 90 93.0 3.40 2.5 92.0 +0.22
10 10.6 1.20 0.8 10.4 +0.11 92 95.0 3.40 2.5 94.0 +0.22
11 11.6 1.30 1.0 11.4 +0.11 93 96.0 3.40 2.5 95.0 +0.22
12 12.7 1.30 1.0 12.4 +0.11 95 98.0 3.40 2.5 97.0 +0.22
13 13.8 1.30 1.0 13.5 +0.11 97 100.0 3.40 2.5 99.0 +0.22
14 14.8 1.30 1.0 14.5 +0.11 98 101.0 3.40 2.5 100.0 +0.22
15 15.8 1.30 1.0 15.5 +0.11 100 103.0 3.40 2.5 102.0 +0.22
16 16.8 1.60 1.2 16.5 +0.11 102 105.3 3.40 2.5 104.3 +0.22
17 17.8 1.70 1.2 17.5 +0.11 103 106.3 3.40 2.5 105.3 +0.22
18 18.9 1.75 1.2 18.5 +0.13 105 108.3 3.40 2.5 107.3 +0.22
19 19.9 1.75 1.2 19.6 +0.13 107 110.3 3.40 2.5 109.3 +0.22
20 21.0 1.75 1.2 20.6 +0.13 108 111.3 3.40 2.5 110.3 +0.22
21 22.0 1.75 1.2 21.6 +0.13 110 113.3 3.40 2.5 112.3 +0.22
22 23.0 1.75 1.2 22.6 +0.13 112 115.3 3.40 2.5 114.3 +0.22
23 24.0 1.75 1.2 23.6 +0.13 113 116.3 3.40 2.5 115.3 +0.22
24 25.2 1.75 1.2 24.8 +0.13 115 118.3 3.40 2.5 117.3 +0.22
25 26.2 1.75 1.2 25.8 +0.13 117 120.3 3.40 2.5 119.3 +0.22
26 27.2 1.75 1.2 26.8 +0.13 118 121.3 3.40 2.5 120.3 +0.25
27 28.2 1.75 1.2 27.8 +0.13 120 123.3 3.40 2.5 122.3 +0.25
28 29.2 1.75 1.2 28.8 +0.13 123 126.3 3.40 2.5 125.3 +0.25
29 30.2 1.75 1.2 29.8 +0.13 125 128.3 3.40 2.5 127.3 +0.25
30 31.4 2.30 1.5 31.0 +0.16 127 130.3 3.40 2.5 129.3 +0.25
31 32.4 2.30 1.5 32.0 +0.16 130 133.3 3.40 2.5 132.3 +0.25
32 33.4 2.30 1.5 33.0 +0.16 133 136.3 3.40 2.5 135.3 +0.25
33 34.4 2.30 1.5 34.0 +0.16 135 138.3 3.40 2.5 137.3 +0.25
34 35.4 2.30 1.5 35.0 +0.16 137 140.3 3.40 2.5 139.3 +0.25
35 36.4 2.30 1.5 36.0 +0.16 140 143.6 4.00 2.5 142.6 +0.25
37 38.8 2.30 1.5 38.2 +0.16 143 146.6 4.00 2.5 145.6 +0.25
38 39.8 2.30 1.5 39.2 +0.16 150 153.6 4.00 2.5 152.6 +0.25
39 40.8 2.30 1.5 40.2 +0.16 153 156.6 4.00 2.5 155.6 +0.25
40 41.8 2.30 1.5 41.2 +0.16 160 163.6 4.00 2.5 162.6 +0.25
42 43.8 2.30 1.5 43.2 +0.16 163 166.6 4.00 2.5 165.6 +0.25
43 44.8 2.30 1.5 44.2 +0.16 165 168.6 4.00 2.5 167.6 +0.25
44 45.8 2.30 1.5 45.2 +0.16 170 173.6 4.00 2.5 172.6 +0.25
45 46.8 2.30 1.5 46.2 +0.16 173 176.6 4.00 2.5 175.6 +0.25
46 47.8 2.30 1.5 47.2 +0.16 175 178.6 4.00 2.5 177.6 +0.25
47 48.8 2.30 1.5 48.2 +0.16 180 183.6 4.00 2.5 182.6 +0.29
48 49.8 2.30 1.5 49.2 +0.16 183 186.6 4.00 2.5 185.6 +0.29
50 51.8 2.30 1.5 51.2 +0.19 190 194.5 5.00 3.00 193.0 +0.29
52 54.3 2.30 1.5 53.5 +0.19 195 199.5 5.00 3.00 198.0 +0.29
53 55.3 2.30 1.5 54.5 +0.19 200 204.5 5.00 3.00 203.0 +0.29
55 57.3 2.30 1.5 56.5 +0.19 205 209.5 5.00 3.00 208.0 +0.29
57 59.3 2.30 1.5 58.5 +0.19 215 219.5 5.00 3.00 218.0 +0.29
58 60.3 2.30 1.5 59.5 +0.19 220 224.5 5.00 3.00 223.0 +0.29
60 62.3 2.30 1.5 61.5 +0.19 225 229.5 5.00 3.00 228.0 +0.29
62 64.3 2.30 1.5 63.5 +0.19 230 234.5 5.00 3.00 233.0 +0.29
63 65.3 2.30 1.5 64.5 +0.19 240 244.5 5.00 3.00 243.0 +0.29
65 67.3 2.30 1.5 66.5 +0.19 250 254.5 5.00 3.00 253.0 +0.32
68 70.3 2.30 1.5 69.5 +0.19 270 277.0 7.50 4.00 275.0 +0.32
70 72.3 2.30 1.5 71.5 +0.19 280 287.0 7.50 4.00 285.0 +0.32
72 74.6 2.80 2.0 73.8 +0.19 300 307.0 7.50 4.00 305.0 +0.32
73 75.6 2.80 2.0 74.8 +0.19 320 327.0 7.50 4.00 325.0 +0.36
74 76.6 2.80 2.0 75.8 +0.19 325 332.0 7.50 4.00 330.0 +0.36
76 78.6 2.80 2.0 77.8 +0.19 350 357.0 7.50 4.00 355.0 +0.36
78 80.6 2.80 2.0 79.8 +0.19 355 362.0 7.50 4.00 360.0 +0.36
79 81.6 2.80 2.0 80.8 +0.19 375 382.0 7.50 4.00 380.0 +0.36
80 82.6 2.80 2.0 81.8 +0.22 380 387.0 7.50 4.00 385.0 +0.36
81 83.6 2.80 2.0 82.8 +0.22 395 402.0 7.50 4.00 400.0 +0.36
82 84.6 2.80 2.0 83.8 +0.22 400 407.0 7.50 4.00 405.0 +0.40
83 85.6 2.80 2.0 84.8 +0.22 415 422.0 7.50 4.00 420.0 +0.40
85 87.6 2.80 2.0 86.8 +0.22 420 427.0 7.50 4.00 425.0 +0.40
440 447.0 7.50 4.00 445.0 +0.40
