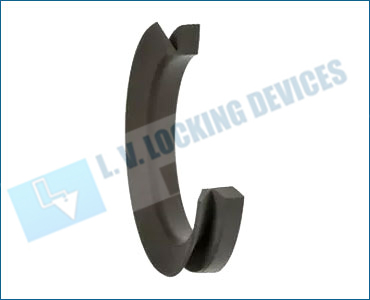

V Rings For Housing Bores Din 5008

Spiral Dowel Pins



Nominal Dimension
RING
GROOVE
Housing Dia.
d1		 s
h 11		 d3 Tolerance b d5 Coefficient
   K
(kg x mm)		 Weight
(kg /1,000)		 d2 Toler-
ance		 M
mm
dim.		 Ax.groove
area
Fp (mm2)
16
 1.00 17.30 +0.180 2.10 130 2270 0.530 16.80 +0.110 1.10 10.00
17
 1.00 18.30 -0.100 2.10 1.30 2120 0.580 17.80 +0.110 1.10 11.00
18
 1.00 19.50   2.20 1.30 2040 0.620 19.00 +0.150 1.10 14.00
19
 1.00 20.50 +0.210 2.20 1.30 1920 0.660 20.00 +0.150 1.10 15.00
20
 1.00 21.50 -0.130 2.30 1.30 1900 0.800 21.00 +0.150 1.10 16.00


22
 1.00 23.50   2.40 1.30 1780 0.830 23.00 +0.150 1.10 17.00
24
 1.20 25.90 +0.210 2.80 1.50 2990 1.300 25.20 +0.210 1.30 22.00
25
 1.20 26.90 +0.210 2.80 1.50 3060 1.400 26.20 +0.210 1.30 24.00
26
 1.20 27.90 +0.210 3.00 1.50 3140 1.500 27.20 +0.210 1.30 25.00
27
 1.20 29.10 +0.210 3.00 1.50 2990 1.530 28.40 +0.210 1.30 30.00


28
 1.20 30.10 +0.250 3.10 1.50 3040 1.800 29.40 +0.210 1.30 31.00
30
 1.20 32.10 +0.250 3.20 1.50 2900 2.030 31.40 +0.250 1.30 33.00
32
 1.20 34.40 +0.250 3.30 1.50 2740 2.050 33.70 +0.250 1.30 42.00
33
 1.20 35.50 +0.250 3.30 1.50 2660 2.350 34.70 +0.250 1.30 44.00
35
 1.50 37.80 +0.250 3.40 1.70 4960 3.200 37.00 +0.250 1.60 55.00


36
 1.50 38.80 +0.250 3.60 1.70 5150 3.230 38.00 +0.250 1.60 58.00
38
 1.50 40.80 +0.250 3.80 1.70 5120 3.680 40.00 +0.250 1.60 61.00
40
 1.75 43.50 +0.390 4.00 2.00 8250 4.750 42.50 +0.250 1.85 81.00
42
 1.75 45.50 +0.390 4.20 2.00 8250 5.200 44.50 +0.250 1.85 85.00
45
 1.75 48.50 +0.390 4.40 2.00 7950 6.000 47.50 +0.250 1.85 90.00


47
 1.75 50.50 +0.460 4.60 2.00 8130 6.500 49.50 +0.250 1.85 95.00
48
 1.75 51.50 +0.460 4.80 2.00 8580 7.000 50.50 +0.300 1.85 96.00
50
 2.00 54.20 +0.460 5.00 2.50 12400 8.500 53.00 +0.300 2.15 120.00
52
 2.00 56.20 +0.460 5.00 2.50 12100 9.000 55.00 +0.300 2.15 125.00
55
 2.00 59.20 +0.460 5.20 2.50 11800 10.000 58.00 +0.300 2.15 133.00


58
 2.00 62.20 +0.460 5.30 2.50 11300 10.500 61.00 +0.300 2.15 140.00
60
 2.00 64.20 +0.460 5.40 2.50 11100 11.250 63.00 +0.300 2.15 145.00
62
 2.00 66.20 +0.460 5.40 2.50 10700 11.750 65.00 +0.300 2.15 150.00
65
 2.50 69.20 +0.460 5.50 2.50 21800 16.250 68.00 +0.300 2.65 155.00
67
 2.50 71.50 +0.460 5.70 2.50 21800 17.300 70.00 +0.300 2.65 161.00


68
 2.50 72.50 +0.460 5.80 2.50 22000 17.750 71.00 +0.300 2.65 163.00
72
 2.50 76.50 +0.460 6.00 2.50 21400 19.600 75.00 +0.300 2.65 173.00
80
 2.50 85.50 +0.540 6.20 2.50 19600 22.900 83.50 +0.350 2.65 224.00
85
 3.00 90.50 +0.540 6.50 3.00 31800 30.000 88.50 +0.350 3.15 238.00
90
 3.00 95.50 +0.540 6.80 3.00 30900 33.000 93.50 +0.350 3.15 252.00


95
 3.00 100.50 +0.540 7.20 3.00 31500 37.500 98.50 +0.350 3.15 261.00
100
 3.00 105.50 +0.540 7.50 3.00 31200 41.900 103.50 +0.350 3.15 280.00
